| Báo Giá Mẫu Ngành Thép Kỹ Thuật Cao |
|---|
Mô tả ngắn của sản phẩmLarge Storage Capacity (20m³) High-Efficiency Vacuum Insulation Durable and Reliable Materials |
Mô tả ngắn của sản phẩmInlet Medium (进口介质): LOX / LIN / LAr / LCO₂ Vaporization Capacity (汽化能力): 250 Nm³/h (Liquid Argon) Design Pressure (设计压力): 3.5 MPa Maximum Working Pressure (最高工作压力): 3.0 MPa Design Temperature (设计温度): −196 °C ~ +65 °C Inlet Temperature (进口温度): −196 °C Outlet Temperature (出口温度): Not lower than the ambient temperature, approximately −10 °C / Not lower than about 10 °C above ambient temperature Pressure Drop (压降): ≤ 0.05 MPa $1,731 |
| Báo Giá Mẫu Ngành Thép Kỹ Thuật Cao |
|---|
 Mô tả ngắn của sản phẩmDesign Dimensions:
Total tank weight: 10,920 kg Maximum filling weight of liquefied medium:
$25,000 |
 Mô tả ngắn của sản phẩmLarge Storage Capacity (20m³) High-Efficiency Vacuum Insulation Durable and Reliable Materials $33,000 |
 Mô tả ngắn của sản phẩmMaintains stable outlet pressure, protecting downstream equipment and systems Fast response to inlet pressure fluctuations Robust design, suitable for continuous operation Easy installation, maintenance, and replacement Suitable for medium to high flow rate systems $385 |

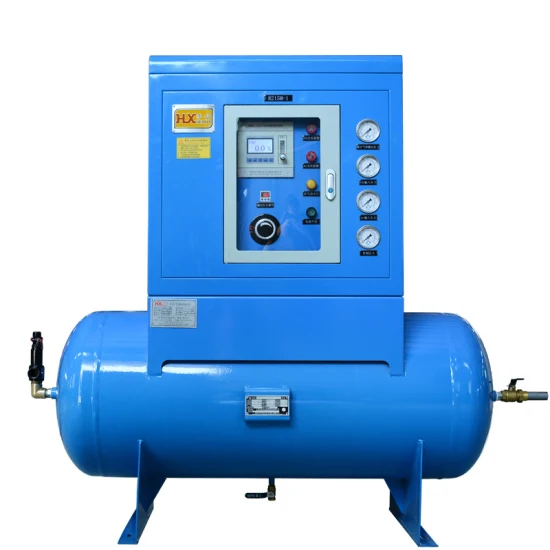

 Mô tả ngắn của sản phẩmPrecise and stable control of the mixing ratio High flow capacity, suitable for continuous production systems Robust and durable design Easy integration into centralized gas supply systems Stable operation with simple maintenance $9,615 |
 Mô tả ngắn của sản phẩmInlet Medium (进口介质): LOX / LIN / LAr / LCO₂ Vaporization Capacity (汽化能力): 250 Nm³/h (Liquid Argon) Design Pressure (设计压力): 3.5 MPa Maximum Working Pressure (最高工作压力): 3.0 MPa Design Temperature (设计温度): −196 °C ~ +65 °C Inlet Temperature (进口温度): −196 °C Outlet Temperature (出口温度): Not lower than the ambient temperature, approximately −10 °C / Not lower than about 10 °C above ambient temperature Pressure Drop (压降): ≤ 0.05 MPa $1,731 |
Successfully delivered to Letu Steel Structure Company, Jiangxi Province — a specialist in industrial steel manufacturing and fabrication.
This is an Argon and CO₂ gas storage system used in structural welding processes, fully integrated from storage and vaporization to pressure regulation, meeting safety standards and performance requirements for modern steel manufacturing plants. Project Highlights:
- Location: Letu Company – Jiangxi Province
- Application: CO₂ + Argon welding system
- Main Equipment:
- • Argon & CO₂ storage tanks

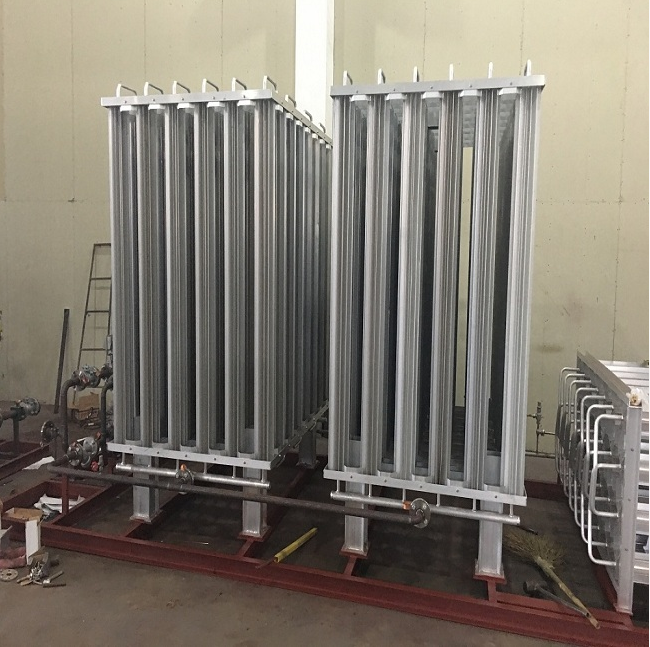

- • Ambient air vaporizer
- • Integrated pressure-regulating and monitoring valve cabinet
The Sales Director of Shennan personally visited the site to:
- Provide guidance on safe operation
- Provide detailed technical guidance for the factory’s engineering team
- Conduct on-site installation quality inspection prior to handover
