Description

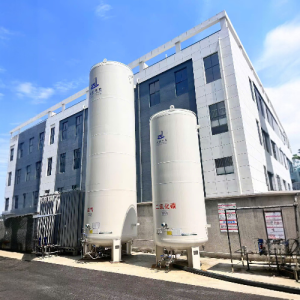

The VT(Q)20/16 vertical gas storage tank is the higher-pressure version in the 20 m³ series. Classified as a Class II tank, it is designed to operate at a design and working pressure of 1.6 MPa.
The vertical gas storage tank maintains a minimum design temperature of −196 °C and uses multi-layer wrapped insulation. Its key highlights include an extremely low static evaporation rate of 0.133% and a design service life of up to 30 years.
Key Features
-
Optimized performance: Static evaporation rate of only 0.133%, minimizing losses.
-
High working pressure: 1.6 MPa, suitable for high-pressure gas distribution.
-
Standard dimensions: Ø2600 × 7650 mm, the same as the 20/10 model.
-
Flexible cryogenic applications: Reliable operation at −196 °C.
